        RV-1系列熱熔斷體

        發布時間:2018-12-18 08:43:44 丨 瀏覽次數:

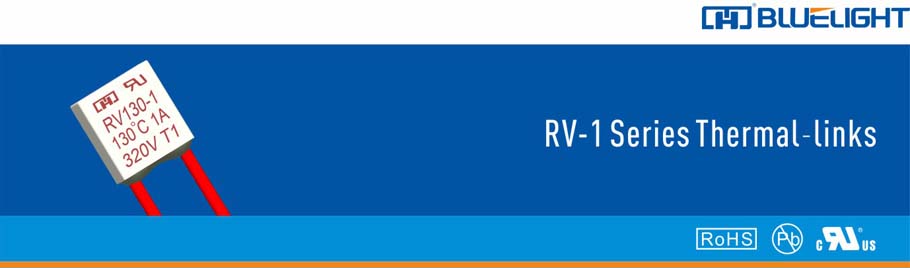

        RV-1系列熱熔斷體(圖1)

        藍光RV-1系列熱熔斷體(溫度保險絲)簡介:

        6.0X 5.6 X 2.4mm Radial Lead Thermal Link

        材料MATERIALS

        本體Body:耐熱性塑料 Thermoplastic

        引線Lead:銅鍍錫 Tin Plated Copper Wire

        封口樹脂Sealant Resin:環氧樹脂 Epoxy Resin

        安規:UL/CUL Approved(詳細見下表)

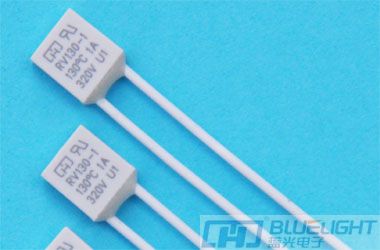

        RV-1系列熱熔斷體(圖2)RV-1系列熱熔斷體(圖3)


        尺寸 Dimensions (unit:mm)
        WLTDD1L1
        L2
        5.6±0.56.0±0.52.4±0.20.55±0.050.82±0.160±23.0±1


        術語解釋   EXPLANATION OF TERMS

        額定動作溫度

        (TF)

        在僅通以不超過10mA的探測電流的條件下測得的使熱熔斷體導電狀態改變的溫度,熱熔斷體必須在上述溫度0/-10℃范圍內動作。

        Temperature of the thetmal-link which causes it to change its state of conductivity with a detection current up to

        10mA as the only load. Thermal fuse must be fusing within the scope of +0/-10℃.

        熔斷溫度

        Fusing-off

        temperature

        產品放置油槽內并通以不超過10mA電流值 ,然后以0.5K/min 至1K/min 的速度穩定升溫 ,熱熔斷體實際動作溫度值。

        The fusing-off temperature indicates value measured in the test oil bath and temperature be increased steadily

        with a rate of rise between 0.5K/min and detective current 10mA or less.

        保持溫度

        (Th)

        熱熔斷體在規定的條件下通過額定電流且保溫168小時,其導電狀態不發生改變的最高溫度值或按IEC60691標準測試值。

        The maximum temperature at which a thermal-link will not cause a change in state of conductivity to open circuit

        while conducting rated current for 168 hours or according to IEC60691.

        最高極限溫度

        (Tm)

        由制造廠規定的溫度,在此溫度下熱熔斷體導電狀態已改變,但其機械性能和電氣性能在規定的時間內不致減弱。

        Temperature of the thermal-link stated by the manufacturer , Up to which the mechanical and electrical properties

        of the thermal-link , Having changed its state of conductivity , Will not be impaired for a given time.



        產品特性及應用   PRODUCT FEATURES AND APPLICATIONS

        材質

        Materials

        本體 Body:Thermoplastic

        引腳 Lead: Tin Plated Copper Wire

        封口樹脂 Sealing Resin:Epoxy Resin

        特性

        Features

        不可復位 No-resettable
        溫度精準 High accuracy of function temperature
        環保 Rohs & REACH compliant

        應用領域

        Application

        燈具、開關電源、家用電器、電機、變壓器、元器件、通訊等領域。

        Lamps, Switching Power Supply, Home Electrical Appliances, Motors, Transformers, Components, Communications

        Field , etc.


        型 號

        Model

        額定動作溫度實測動作溫度保  持 溫  度最高極限溫度額  定 電  流額  定 電  壓安規認證   Safety Approvals
        Tf(℃)Th(℃)Tm(℃)Ir(A)Ur(V)1-230R116224Q61.png1-230R1162309246.png1-230R11623223b.png1-230R1162335K9.png1-230R1162351134.png1-230R1162404V3.png
        RV102-110299±3821801250/300/320




        RV115-1115112±3951801250/300/320




        RV125-1125122±31051801250/300/320




        RV130-1130127±31101801250/300/320




        RV135-1135130±31151801250/300/320




        RV145-1145140±31251801250/300/320




        RV150-1150145±31301801250/300/320
