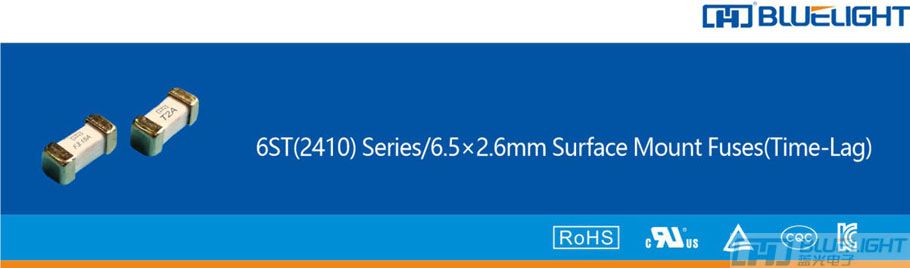

<nobr id="vtmam"></nobr> 6ST 延時貼片保險絲
藍光 6ST 延時貼片電流保險絲簡介：
材料Materials
本體Body：陶瓷管 Ceramic Tube
銅帽Cap：黃銅鍍金 Brass with gold Plated / 黃銅鍍銀 Brass with silver plated
可熔體Element：合金絲 Alloy Wire
安規：cURus/CQC/TUV/KC Approved（詳細見下表）
 |  |
| 電氣特性 ELECTRICAL CHARACTERISTICS | |||||||||
額定電流 Rated Current | 熔斷時間 Opening Time | ||||||||
| 100% | 200% | - | - | 1000% | |||||
| Min. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| 200mA-30A | 4hour | - | 120sec. | - | - | - | - | 10ms | 100ms |
In accordance with IEC60127.1，IEC60127.4，IEC60127.7，GB9364.1，GB9364.1， UL248-1，UL248-14
| 分斷能力 INTERRUPTING RATING | |||||||
| cURus | 100A@ 350V/300V/250V/125V AC | ||||||
| 100A@ 125V/72V/63V/32V DC | |||||||
| TUV | 100A@ 250V AC 100A@ 125V DC | ||||||
| CQC | 100A@ 250V AC | ||||||
| 100A@ 125V DC | |||||||
| KC | 100A@ 250V AC 100A@ 125V DC | ||||||
| 產品特性 PRODUCT FEATURES | |||||||
材質 Materials | 本體Body：陶瓷管 Ceramic Tube 銅帽Cap：黃銅鍍金 Brass with gold Plated / 黃銅鍍銀 Brass with silver plated 可熔體Element：合金絲 Alloy Wire | ||||||
操作溫度 Operating Temperature | -55℃~+125℃ (需考慮溫度折減 Consider de-rating) | ||||||
可焊性 Solderability | T/ 熔錫溫度T=235℃±5℃， 浸錫時間 t=5+0/-0.5s Cover/覆蓋率≧95% | ||||||
耐焊接熱 Resistance to Soldering Heat | 熔錫溫度T=260℃±5℃， 浸錫時間 t=10s±1s | ||||||
建議焊錫參數 Recommended Soldering Parameters | 260℃，10s Max. (Solder-reflow / 回流焊) | ||||||
儲存條件 Storage Conditions | 在溫度+10~40℃、相對濕度≤75%的密閉條件下可存放2年。 Can be stored for 2 years under tight seal condition at temperature +10~40℃ relative humidity ≤ 75%. | ||||||
在溫度+10~40℃、相對濕度為95%的非露天下最多可存放30天。 At most can be kept 30 days at temperture +10~40℃ relative humidity be 95% under covered conditions. | |||||||
產品部件號 Part NO. | 額定電流 Current Rating | 安全認證 Safety Approvals | I2T參考值 Reference (A2Sec.) | ||||||
|  |
|
|
|
|
| |||
| 6ST 0200 | 200mA | ● | ● | ● | 0.080 | ||||
| 6ST 0250 | 250mA | ● | ● | ● | 0.130 | ||||
| 6ST 0300 | 300mA | ● | ● | ● | 0.160 | ||||
| 6ST 0315 | 315mA | ● | ● | ● | 0.160 | ||||
| 6ST 0350 | 350mA | ● | 0.300 | ||||||
| 6ST 0400 | 400mA | ● | ● | ● | 0.500 | ||||
| 6ST 0450 | 450mA | ● | ● | ● | 0.500 | ||||
| 6ST 0500 | 500mA | ● | ● | ● | 0.580 | ||||
| 6ST 0630 | 630mA | ● | ● | ● | 0.700 | ||||
| 6ST 0750 | 750mA | ● | 0.500 | ||||||
| 6ST 0800 | 800mA | ● | ● | ● | 1.960 | ||||
| 6ST 1100 | 1A | ● | ● | ● | ● | 2.680 | |||
| 6ST 1125 | 1.25A | ● | ● | ● | ● | 4.600 | |||
| 6ST 1150 | 1.5A | ● | ● | ● | 7.000 | ||||
| 6ST 1160 | 1.6A | ● | ● | ● | ● | 7.000 | |||
| 6ST 1200 | 2A | ● | ● | ● | ● | 12.20 | |||
| 6ST 1250 | 2.5A | ● | ● | ● | ● | 20.00 | |||
| 6ST 1300 | 3A | ● | 24.20 | ||||||
| 6ST 1315 | 3.15A | ● | ● | ● | ● | 24.20 | |||
| 6ST 1350 | 3.5A | ● | 28.00 | ||||||
| 6ST 1400 | 4A | ● | ● | ● | ● | 40.00 | |||
| 6ST 1450 | 4.5A | ● | ● | ● | 45.00 | ||||
| 6ST 1500 | 5A | ● | ● | ● | ● | 57.80 | |||
| 6ST 1600 | 6A | ● | ● | ● | 102.0 | ||||
| 6ST 1630 | 6.3A | ● | ● | ● | ● | 102.0 | |||
| 6ST 1700 | 7A | ● | 121.1 | ||||||
| 6ST 1800 | 8A | ● | 169.0 | ||||||
| 6ST 2100 | 10A | ● | 170.0 | ||||||
| 6ST 2120 | 12A | ● | 312.0 | ||||||
| 6ST 2125 | 12.5A | ● | 312.0 | ||||||
| 6ST 2150 | 15A | ● | 299.0 | ||||||
| 6ST 2160 | 16A | ● | 400.0 | ||||||
| 6ST 2200 | 20A | ● | 420.0 | ||||||
| 6ST 2250 | 25A | ● | 900.0 | ||||||
| 6ST 2300 | 30A | ● | 1200 | ||||||
